Scope & Objectives

• Implement OBUK DCR using Software Statement Assertions (SSA) with PingFederate as OP.
• Provide deterministic client_id allocation to prevent duplicate client sprawl.
• Enforce certificate-bound access before CBAT existed: transport mTLS cert must match client's cnf key material.
• Persist the original SSA + SSA hash for RFC 7592-style management, audit, and idempotency.

High-Level Architecture

TPP (mTLS) ──► TLS Termination/Gateway (OCSP, trust) ──► PF DCR Extension (Golang) ──► PingFederate Admin API
                                               │                                            │
                                               │                                            └──► PF OAuth Client Store (PostgreSQL)
                                               └──► Propagates cert headers to upstream


Gateway → Upstream Certificate Header Mapping

• X-BANK-Certificate-DN: subject DN
• X-BANK-Certificate-Serial: serial
• X-BANK-Certificate-Verify: result
• BANK-TLS-Certificate: base64 PEM of client cert

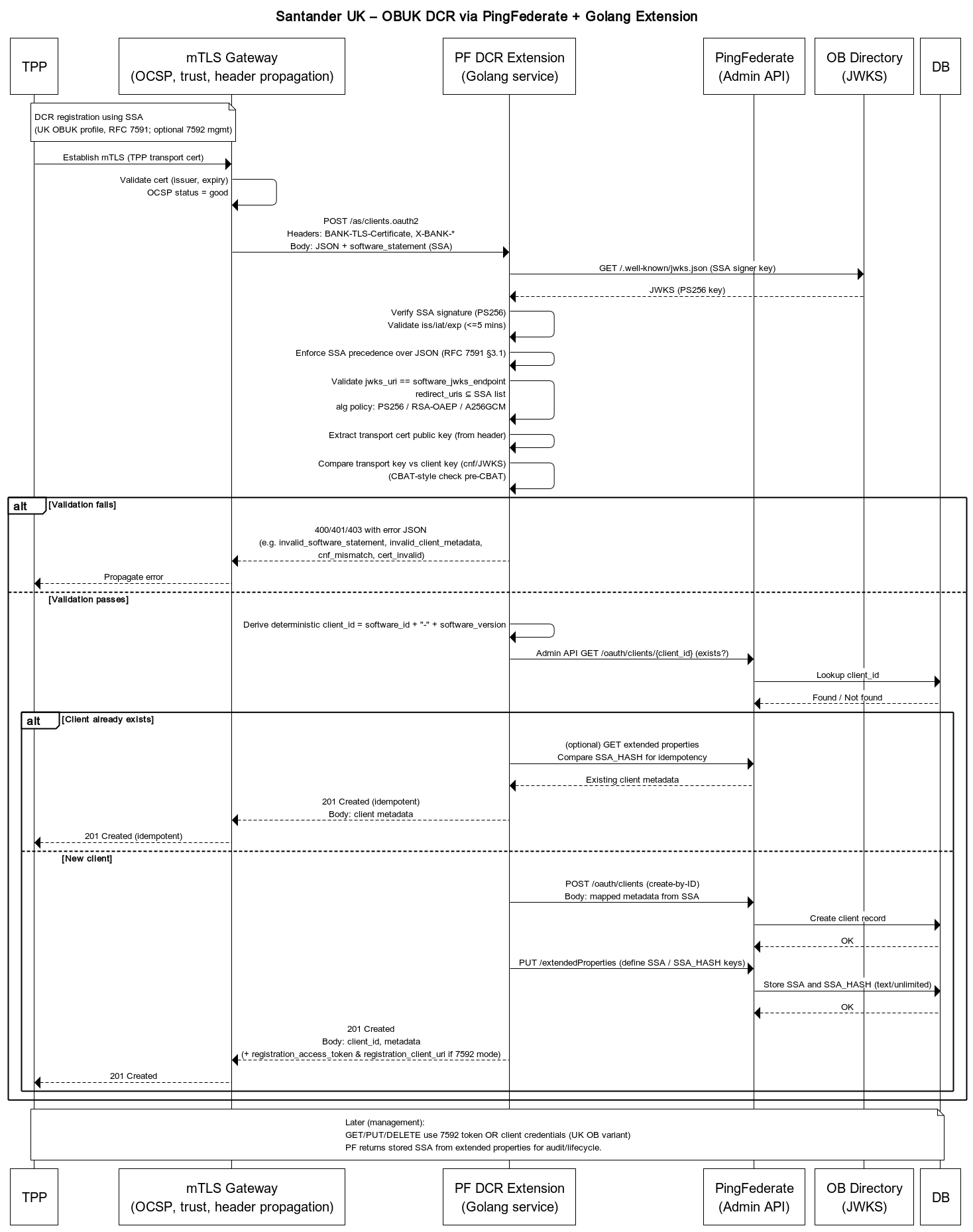

Sequence: DCR with SSA (OBUK)

Click the diagram to open it full size in a new tab.

Example Payloads (sanitised)

DCR Request (excerpt)

       {
  "application_type": "web",
  "grant_types": ["client_credentials","authorization_code","refresh_token","implicit"],
  "response_types": ["code id_token"],
  "token_endpoint_auth_method": "tls_client_auth",
  "introspection_endpoint_auth_method": "tls_client_auth",
  "revocation_endpoint_auth_method": "tls_client_auth",
  "tls_client_auth_subject_dn": "CN=<software_id>,O=Open Banking,C=UK",
  "id_token_signed_response_alg": "PS256",
  "request_object_signing_alg": "PS256",
  "request_object_encryption_alg": "RSA-OAEP",
  "request_object_encryption_enc": "A256GCM",
  "require_signed_request_object": true,
  "require_pushed_authorization_requests": true,
  "jwks_uri": "https://keystore.sandbox.directory.openbanking.org.uk/.../application.jwks",
  "redirect_uris": ["https://oauth.example/cb"],
  "software_statement": "<SSA JWT (PS256)>"
}


DCR Response (RFC 7592-style when enabled)

 {
  "client_id": "b8986a43-e730-460f-97f9-9ad90f4e31d2-1.00",
  "grant_types": ["implicit","authorization_code","client_credentials","refresh_token"],
  "response_types": ["code id_token"],
  "jwks_uri": "https://keystore.../application.jwks",
  "registration_client_uri": "https://matls.santander.bank/as/clients.oauth2/{client_id}",
  "registration_access_token": "....",
  "require_signed_request_object": true,
  "tls_client_auth_subject_dn": "CN=...,O=Open Banking,C=UK"
}


Note: UK OB profile typically omits the 7592 management token; we supported both modes.

Validation Rules (selected)

• SSA signature verified (PS256) using OB Directory JWKS; iss, iat (<= 5 min), exp checked.
• SSA precedence: where fields appear in both JSON body and SSA, SSA wins (RFC 7591 §3.1).
• jwks_uri must equal SSA software_jwks_endpoint; redirect URIs ⊆ SSA list.
• Algorithms constrained: id_token_signed_response_alg=PS256, request_object_signing_alg=PS256, enc=A256GCM, alg=RSA-OAEP.
• Auth methods consistent across token/introspection/revocation (typically tls_client_auth).
• Roles→Scopes mapping enforced (AIS→accounts, PIS→payments, CBPII→fundsconfirmations with openid).

Deterministic client_id Algorithm

 // Pseudocode (Golang-ish)
func deriveClientID(softwareID, softwareVersion string) string {
  // Normalise version (e.g., "1.00"); ensure ASCII/upper for DN safety if used.
  v := normaliseVersion(softwareVersion)
  return fmt.Sprintf("%s-%s", softwareID, v)
}

// On POST:
// 1) compute cid := deriveClientID(SSA.software_id, SSA.software_version)
// 2) if client exists with cid: treat as idempotent (optionally compare SSA hash); else create


This prevented duplicate client sprawl when the same SSA was submitted multiple times.

Pre-CBAT Certificate Binding (transport cert vs cnf)

Before CBAT was mainstream, we enforced a practical equivalent:

1. Gateway ensures mTLS; forwards base64 PEM of client cert in BANK-TLS-Certificate.
2. DCR service extracts the leaf public key from the PEM and compares it to the cnf (or equivalent) key material associated with the client's registration (from SSA/JWKS).
3. PingFederate policy (with Dan's changes) rejects tokens/requests when the presented transport key does not match the registered client key material.

assert samePublicKey( transportCert.PublicKey, registeredClientKey ) == true


SSA Persistence & Hashing

• Stored original SSA JWT in Extended Properties on the PF client record (for read/update/audit).
• Computed and stored SSA hash (e.g., SHA-256) to support idempotency checks and integrity verification.
• Adjusted PF DB schema where necessary to avoid truncation (extended property column length → unlimited).

PF Admin API Usage

POST   /oauth/clients               // create-by-ID (RFC 7592 friendly)
GET    /oauth/clients/{id}          // read
PUT    /oauth/clients/{id}          // update
DELETE /oauth/clients/{id}          // delete
GET    /extendedProperties
PUT    /extendedProperties          // define SSA & SSA_HASH keys for client metadata

DB Schema Note (PostgreSQL)

-- Example (illustrative): increase storage for extended properties
ALTER TABLE pf_oauth_client_attributes
ALTER COLUMN attribute_value TYPE text;  -- from varchar(1024) to text/unlimited

RFC 7592-style Management (when enabled)

POST   /dcr                         -> create (returns registration_access_token)
GET    /dcr/{client_id}             -> read   (bearer: registration_access_token)
PUT    /dcr/{client_id}             -> update (bearer: registration_access_token)
DELETE /dcr/{client_id}             -> delete (bearer: registration_access_token)

UK OB profile variant instead uses client credentials for GET/PUT/DELETE and omits the management token - we supported both patterns.

Error Handling Mapping

• invalid_redirect_uri - redirect not in SSA set.
• invalid_client_metadata - alg/policy/roles/scopes mismatches.
• invalid_software_statement - bad signature/expired/claims missing.
• unapproved_software_statement - SSA issuer not trusted / org inactive.
• 401/403 - transport cert absent/invalid; cnf mismatch.

Threats & Mitigations

Multi-Segment Routing

Supported single entry with segment routing via subdomains/paths, e.g.:

https://matls.yellow.santander.bank/as/clients.oauth2
https://matls.santander.bank/green/as/clients.oauth2


Gateway normalises to one DCR endpoint and injects brand_id header consumed by PingFederate.

Testing & Conformance

• SSA signature/claim tests with synthetic SSAs and expiry windows.
• mTLS negative tests: bad issuer, revoked cert (OCSP), wrong key vs cnf.
• Algorithm policy enforcement unit tests.
• Lifecycle tests: update/delete with SSA retrieval; idempotent re-POST.

Documentation & Knowledge Transfer

• Runbooks: DCR operations, client lifecycle, troubleshooting.
• Admin guides: PF extended properties, management endpoints, schema backup.
• Security notes: OCSP dependencies, header integrity from gateway, policy checks.

Engagement delivered in collaboration with Raidiam. Craig Greenhouse (via Obsequio Software Ltd - now Opendata Consult Ltd) was principal consultant/lead engineer, working with Dan (Raidiam IAM Consultant) and the team at Santander UK.
