OB v4 Architecture, cVRP, and VRP+

Open Banking v3 delivered interoperability. Open Banking v4 delivers adversarial security. Variable Recurring Payments deliver programmable delegated financial authority.

This article provides a standards-engineer level architecture deep dive into the security, policy, lifecycle, and core banking enforcement implications of Open Banking v4 and VRP. If you're building financial infrastructure, migrating from v3.x, or trying to understand why VRP requires fundamentally different security primitives, this is for you.

This article assumes familiarity with VRP fundamentals covered in Part 1 and the commercial landscape from Part 2. For a lighter introduction to FAPI 2.0 specifically, see What's New in FAPI 2.0. This piece goes considerably deeper.

1. Open Banking v3.x to v4.x: From PSD2 APIs to Financial-Grade Security Systems

1.1 OB v3.x: The PSD2-Era Security Baseline

Open Banking v3.x was designed in the PSD2 era, when the primary objective was interoperability and market bootstrapping, not adversarial security hardening.

Key characteristics:

• OAuth 2.0 authorization code flow
• Mutual TLS (mTLS) at the transport layer
• Static OAuth scopes for consent representation
• Bearer access tokens
• Directory-issued X.509 certificates for trust bootstrap

Architecturally, OB v3.x treated consent as metadata attached to OAuth scopes, not as an enforceable policy object.

1.2 OB v4.x: Aligning with Financial-Grade API (FAPI)

Open Banking v4.x represents a structural shift from API enablement to adversarial security posture, aligning with:

• FAPI 1.0 Advanced
• FAPI 2.0 security profiles
• OAuth 2.1 baseline
• Rich authorization Requests (RAR)
• Pushed authorization Requests (PAR)
• JWT-Secured authorization Response Mode (JARM)

In OB v4.x, the Open Banking API layer becomes a cryptographically hardened financial control plane with tight coupling to core banking enforcement layers.

1.3 Security Posture Delta: v3.x vs v4.x

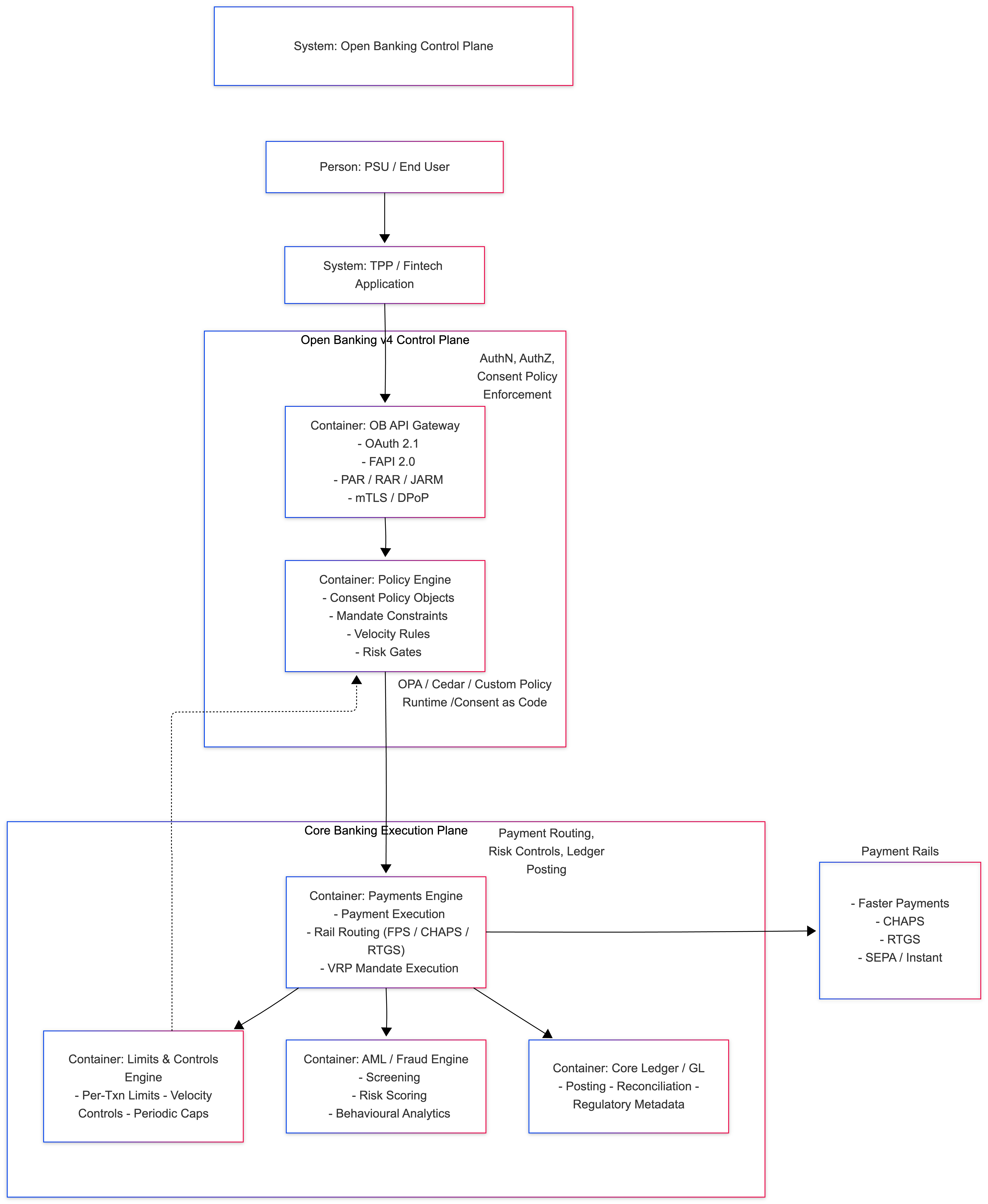

1.4 Architectural Implication

OB v4.x is not a drop-in API upgrade. It is a distributed cryptographic protocol system with tight coupling to core banking enforcement layers.

TPP App  |<------>|  AS / OB Gateway  |<------>|  Core Banking Systems  |
         |        |                   |        |                        |
         | OAuth 2.1 + FAPI           | Policy Enforcement              |
         | PAR / RAR / JARM           | Mandate Engine                  |

2. FAPI 2.0: OAuth for Adversarial Financial Systems

2.1 What FAPI 2.0 Actually Changes

FAPI 2.0 is not incremental hardening. It assumes a hostile environment where:

• Browsers are untrusted
• Clients may be compromised
• Networks are adversarial
• Tokens will be stolen unless cryptographically bound

2.2 Mandatory Security Requirements

FAPI 2.0 mandates:

• OAuth 2.1 baseline
• PAR for authorization request integrity
• JARM for authorization response integrity
• Sender-constrained access tokens
• Signed request objects
• Unbound bearer tokens are disallowed in FAPI 2 Advanced; sender-constrained tokens are required (via mTLS or DPoP)
• No implicit flow
• Strict redirect URI matching

This mitigates major OAuth attack classes.

2.3 Sender-Constrained Tokens

Tokens MUST be bound to a cryptographic key:

• Mutual TLS certificate binding - token bound to client certificate
• DPoP (Demonstration of Proof-of-Possession) - token bound to ephemeral key pair
• per-request proof JWT
• nonce replay protection

This prevents:

• Token replay attacks
• Token exfiltration attacks
• Insider API misuse

2.4 Threat Model Shift

3. OAuth 2.1: Removing Two Decades of Legacy Complexity

3.1 OAuth 2.1 as a Consolidation Profile

OAuth 2.1 merges:

• OAuth 2.0 core
• Security Best Current Practices (BCP)
• Implicit flow deprecation
• Mandatory PKCE
• TLS minimum enforcement

3.2 Removed Features

OAuth 2.1 formally removes:

• Implicit flow
• Resource Owner Password Credentials (ROPC) flow
• Token delivery in URL fragments
• Weak redirect patterns

3.3 Architectural Consequences for Banks

Banks must:

• Refactor legacy OAuth authorization servers
• Rebuild SDKs and client libraries
• Refactor mobile and SPA OAuth patterns to use authorization code + PKCE and remove implicit-flow assumptions.
• Harden redirect and token handling logic

OAuth 2.1 is an operationally breaking change for many bank estates still running OAuth 2.0-era assumptions (though spec-wise it is a consolidation profile, not a new protocol).

4. PAR, RAR, and JARM: Hardening the Authorization Channel

Open Banking v4 and FAPI 2.0 fundamentally redesign the OAuth authorization channel. Historically, OAuth treated the browser as a semi-trusted conduit. FAPI assumes the browser is hostile.

4.1 Pushed Authorization Requests (PAR)

4.1.1 Problem Statement

In OAuth 2.0, authorization requests are sent via front-channel redirects:

GET /authorize?client_id=...&scope=...&redirect_uri=...

This design is vulnerable to:

• Parameter tampering
• Consent manipulation
• Injection of malicious redirect URIs
• Browser-based interception

4.1.2 PAR Architecture

PAR moves the full authorization request server-to-server:

TPP -> AS (PAR Endpoint) -> returns request_uri
Browser -> AS /authorize?request_uri=...

4.1.3 Example PAR Request

POST /par HTTP/1.1
Content-Type: application/jwt
Authorization: Bearer <client_assertion>
{
  "iss": "tpp.example",
  "aud": "https://bank.example/as",
  "response_type": "code",
  "client_id": "tpp-client-id",
  "redirect_uri": "https://tpp.example/cb",
  "scope": "openid payments",
  "claims": { ... }
}

Note: The above is an illustrative JSON payload within the JWT rather than the JWT itself.

PAR Response

{
  "request_uri": "urn:ietf:params:oauth:request_uri:abc123",
  "expires_in": 90
}

Normative Requirement (FAPI 2):

The Authorization Server MUST support Pushed Authorization Requests.

4.2 Rich Authorization Requests (RAR)

4.2.1 Why Scopes Are Insufficient

OAuth scopes are string labels, incapable of expressing:

• Payment caps
• Merchant allowlists
• Frequency limits
• Time-bound mandates
• Risk policies

VRP requires structured, machine-readable Authorization semantics.

4.2.2 RAR Object Structure

RAR introduces the authorization_details object:

"authorization_details": [
  {
    "type": "urn:openbanking:vrp",
    "instructedAmount": {
      "amount": "500.00",
      "currency": "GBP"
    },
    "frequency": "Monthly",
    "validity": {
      "from": "2026-01-01",
      "to": "2026-12-31"
    },
    "merchant": {
      "name": "ACME Utilities Ltd",
      "merchant_id": "123456"
    }
  }
]

4.2.3 Architectural Implication

RAR turns OAuth from permission tokens into delegated financial authority contracts.

Normative Requirement:

For VRP, Authorization Servers MUST interpret authorization_details as enforceable policy objects.

4.3 JWT-Secured Authorization Response Mode (JARM)

4.3.1 Problem Statement

OAuth authorization responses historically used query parameters:

https://client/cb?code=abc123&state=xyz

This is vulnerable to:

• Code injection
• Mix-up attacks
• Parameter manipulation
• Malicious intermediaries

4.3.2 JARM Architecture

JARM wraps the authorization response in a signed JWT:

HTTP/1.1 302 Found
Location: https://tpp.example/cb?response=<JWT>

Note: JARM may be delivered via query, fragment, or form_post mode. In regulated deployments, query or form_post is more typical than fragment.

4.3.3 Example JARM Response JWT Payload

{
  "iss": "https://bank.example/as",
  "aud": "tpp-client-id",
  "code": "abc123",
  "state": "xyz",
  "exp": 1735689600
}

Normative Requirement:

Authorization Servers MUST sign authorization responses using JWS.

4.4 Combined FAPI 2 authorization Flow

TPP Backend       Browser         AS              Policy Engine
    |                |              |                    |
    |-- PAR -------->|              |                    |
    |<-- request_uri-|              |                    |
    |                |-- Redirect ->|                    |
    |                |              |-- Authenticate User -->|
    |                |              |-- Policy Review UI --->|
    |                |<-- User Consent -------------------|
    |                |<-- JARM JWT--|                    |
    |-- Token Request ------------->|                    |
    |<-- Sender-bound Token --------|                    |
    |-- API Call w/ Proof --------->|-- Policy Enforcement ->|

4.5 Security Guarantees Introduced

4.6 Operational Considerations

Banks implementing PAR/RAR/JARM must address:

• Request object storage and expiry
• Policy validation latency
• JWT signing key management (HSM recommended)
• Audit logging of consent payloads
• Regulatory evidence retention

5. Scopes Aren't Enough: Consent as Structured Policy Objects

OAuth scopes were designed for coarse-grained permission signalling in consumer APIs. Variable Recurring Payments and commercial delegated payments require machine-enforceable financial delegation constraints.

5.1 Limitations of OAuth Scopes

Traditional Open Banking consent models used scopes such as:

scope=accounts payments openid

Scopes suffer from fundamental limitations:

• Flat string semantics
• No parameterisation
• No enforceable constraints
• No linkage to core banking controls
• No lifecycle semantics

Scopes describe what but not how, when, how much, or to whom.

5.2 Consent as a Policy Object

FAPI and OpenID RAR introduce structured consent objects that encode financial delegation constraints. Consent becomes policy-as-data, not metadata.

5.3 VRP Consent Object Example (RAR)

"authorization_details": [
  {
    "type": "urn:openbanking:vrp",
    "mandate": {
      "max_amount": {
        "amount": "500.00",
        "currency": "GBP"
      },
      "periodicity": "Monthly",
      "max_payments_per_period": 10,
      "validity": {
        "start": "2026-01-01T00:00:00Z",
        "end": "2026-12-31T23:59:59Z"
      },
      "merchant": {
        "name": "ACME Utilities Ltd",
        "merchant_id": "GB-123456789"
      },
      "beneficiary_account": {
        "iban": "GB29NWBK60161331926819"
      }
    }
  }
]

5.4 Normative Enforcement Requirements

Authorization Servers MUST:

• Persist consent policy objects
• Bind policy objects to mandate identifiers
• Enforce constraints at execution time
• Audit all policy decisions

Resource Servers MUST:

• Validate mandate ID
• Validate policy constraints
• Reject transactions violating policy

5.5 Consent Policy Enforcement Architecture

+-------------------+
| Consent Store     |
| (Immutable Log)   |
+-------------------+
        |
        v
+-------------------+      +-------------------+
| Policy Engine     | ---> | Core Banking      |
| (OPA / Custom)    |      | Payment Engine    |
+-------------------+      +-------------------+
        ^
        |
+-------------------+
| OB Gateway / AS   |
+-------------------+

5.6 Policy Enforcement Flow (Execution-Time)

TPP -> Payment API -> OB Gateway -> Policy Engine -> Core Banking
                                          |
                                          +--> Reject if policy violated

5.7 Consent Object State Machine

Consent is not static. It has lifecycle semantics:

+------------+
| Proposed   |
+------------+
      |
      v
+------------+     Suspend     +------------+
| Active     | --------------> | Suspended  |
+------------+                 +------------+
      |                              |
      | Revoke                       | Reactivate
      v                              v
+------------+                 +------------+
| Revoked    |                 | Active     |
+------------+                 +------------+
      |
      v
+------------+
| Expired    |
+------------+

5.8 Consent vs Core Banking Mapping

5.9 Legal and UX Coupling

Consent UI, legal contract, and enforcement code must be isomorphic:

UI Text  <--> Legal Terms <--> Policy Object <--> Enforcement Logic

Any divergence introduces regulatory and litigation risk.

5.10 Consent as a Contract

VRP consent is not merely user preference. It is a legally binding delegated authority contract encoded as JSON.

5.11 Storage and Audit Requirements

Banks should:

• Store consent objects in immutable append-only logs
• Hash consent payloads for tamper detection
• Provide regulatory replay capability
• Retain consent evidence for statutory periods

5.12 Performance Considerations

Policy enforcement must occur:

• At authorization
• At execution
• On mandate amendment
• On mandate revocation

Latency budgets must be compatible with real-time payment rails.

6. VRP Mandate Lifecycle Architecture

Variable Recurring Payments introduce long-lived delegated financial authority. This requires a formal mandate lifecycle with explicit state transitions, auditability, and enforcement semantics.

6.1 Mandate Lifecycle Overview

A VRP mandate is a first-class financial object with its own lifecycle, distinct from OAuth tokens:

Consent Object -> Mandate Record -> Execution Policy -> Ledger Reference

Mandates persist longer than OAuth sessions and tokens.

6.2 Mandate State Machine

+-----------+
| Draft     |
+-----------+
      |
      v
+-----------+  Activate   +-----------+
| Pending   | ----------> | Active    |
+-----------+             +-----------+
                               |
                     +---------+---------+
                     |         |         |
                  Suspend   Revoke    Expire
                     |         |         |
                     v         v         v
              +-----------+ +-----------+ +-----------+
              | Suspended | | Revoked   | | Expired   |
              +-----------+ +-----------+ +-----------+
                     |
                     | Reactivate
                     v
              +-----------+
              | Active    |
              +-----------+

6.3 Mandate Creation Flow

Sequence Diagram

TPP Backend   Browser   AS        OB Gateway   Policy Engine   Core Banking
    |            |       |              |             |              |
    |-- PAR ------------>|              |             |              |
    |<-- request_uri ----|              |             |              |
    |            |-- Redirect --------->|             |              |
    |            |       |-- Auth UI -->|             |              |
    |            |       |              |<-- Consent Capture --------|
    |            |       |<-- Policy Validate ------->|              |
    |            |<-- JARM JWT ---------|             |              |
    |-- Token Request ----------------->|             |              |
    |<-- Sender-bound Token ------------|             |              |
    |-- Create Mandate API ------------>|             |              |
    |            |       |              |-- Persist Mandate -------->|
    |<-- Mandate ID --------------------|             |              |


6.4 Mandate API (Normative)

Create Mandate

POST /open-banking/vrp/mandates
Authorization: Bearer <sender-bound-token>
Content-Type: application/json

{
  "consent_id": "consent-abc123",
  "policy": { ...authorization_details... }
}

Response

{
  "mandate_id": "mandate-xyz789",
  "status": "Active",
  "created_at": "2026-01-23T12:00:00Z"
}

6.5 Mandate Execution Flow

Execution is decoupled from consent:

TPP -> Payment Execution API -> Policy Check -> Core Banking -> Settlement

Execution Request

POST /open-banking/vrp/payments

{
  "mandate_id": "mandate-xyz789",
  "amount": {
    "amount": "45.00",
    "currency": "GBP"
  },
  "reference": "Invoice 12345"
}

6.6 Execution-Time Policy Enforcement

Policy Engine must validate:

Normative requirement:

The Payments Engine MUST reject execution if any limit rule fails.

6.7 Mandate Amendment

Mandates are mutable but require user re-authorization:

TPP -> PAR/RAR Amendment -> User Auth -> Policy Update -> Mandate Version++

Mandates should be versioned immutably.

6.8 Mandate Suspension and Reactivation

Suspend Mandate

POST /mandates/{mandate_id}/suspend

Reactivate Mandate

POST /mandates/{mandate_id}/reactivate

Suspension must prevent execution but retain policy and audit history.

6.9 Mandate Revocation

Revocation permanently invalidates the mandate:

DELETE /mandates/{mandate_id}

Normative requirement:

Resource Servers MUST reject any execution referencing a revoked mandate.

6.10 Mandate Expiry

Mandates must auto-expire when:

• Validity end date reached
• Account closed
• Regulatory revocation event occurs

6.11 Idempotency Requirements

Payment execution must support idempotency keys:

Idempotency-Key: 550e8400-e29b-41d4-a716-446655440000

Banks must guarantee exactly-once execution semantics.

6.12 Audit and Evidence Requirements

Banks must log:

• Mandate creation
• Amendments
• Execution events
• Policy violations
• Revocation events

Logs should be immutable and cryptographically hashed.

6.13 Mandate vs Token Lifetimes

Mandates become long-lived delegated financial instruments.

7. Mapping Consent and Mandates to Core Banking Enforcement

Open Banking consent objects and VRP mandates are meaningless unless enforced by core banking systems. This section describes the architectural coupling required between Open Banking gateways and internal banking domains.

7.1 Core Banking Enforcement Domains

A VRP execution request intersects multiple internal banking domains:

7.2 High-Level Enforcement Architecture

+-------------------+ +-------------------+
| OB Gateway / AS   | ---> | Policy Engine     |
+-------------------+      +-------------------+
                                 |
                                 v
                          +-------------------+
                          | Payments Engine   |
                          +-------------------+
                                 |
         +-----------------------+-----------------------+
         |                       |                       |
         v                       v                       v
+-------------------+ +-------------------+ +-------------------+
| Limits Engine     | | AML / Fraud       | | Ledger / GL       |
+-------------------+ +-------------------+ +-------------------+

7.3 Execution-Time Enforcement Flow

TPP -> OB API -> Policy Engine -> Payments Engine
                       |                  |
                       v                  v
                 Limits Check      AML/Fraud Scoring
                       |                  |
                       +-------+----------+
                               |
                               v
                        Ledger Posting

7.4 Limits and Velocity Controls

Mandate constraints must map to internal limit controls:

These constraints must be enforced consistently across all execution paths.

7.5 Payments Posting Model

7.5.1 Internal Posting Flow

Customer Account (DR) -> VRP Clearing Account (CR)
VRP Clearing Account -> Beneficiary Settlement (DR)

Banks should maintain a VRP suspense/clearing account for reconciliation and dispute handling.

Banks may implement intermediate nostro or payments hub accounts depending on rail architecture.

7.5.2 Ledger Metadata Propagation

Mandate metadata must be propagated into the General Ledger:

{
  "mandate_id": "mandate-xyz789",
  "consent_id": "consent-abc123",
  "tpp_id": "tpp-client-id",
  "policy_hash": "sha256:deadbeef...",
  "execution_reference": "Invoice 12345"
}

This metadata is critical for:

• Regulatory audit
• Dispute resolution
• Revenue attribution
• Fraud analytics

7.6 AML and Fraud Integration

VRP execution must trigger AML and fraud pipelines:

7.6.1 Screening

• Sanctions list checks
• Beneficiary screening
• Velocity anomaly detection

7.6.2 Risk Scoring Inputs

Risk models should ingest:

• Mandate age
• TPP reputation
• Merchant category
• Historical execution patterns
• User behavioural biometrics

7.7 Real-Time Fraud Controls

Policy engines should expose dynamic risk gates:

If risk_score > threshold:
    suspend mandate
    require step-up authentication

VRP mandates introduce long-lived fraud surfaces, unlike one-off payments.

7.8 Treasury and Liquidity Impacts

VRP introduces predictable but binding cash flow commitments.

Treasury systems should:

• Forecast mandate-based outflows
• Allocate liquidity buffers
• Stress-test mandate concentration risk

Large-scale VRP adoption materially affects intraday liquidity management.

7.9 Reconciliation Architecture

7.9.1 Settlement Reconciliation

Banks must reconcile:

• Mandate execution logs
• Payment rail settlement reports
• Internal ledger postings

7.9.2 Reconciliation Keys

7.10 Dispute and Chargeback Handling

Unlike card chargebacks, VRP disputes require:

• Mandate evidence replay
• Policy compliance proof
• Customer consent artefacts

Banks must maintain cryptographic consent evidence to defend disputes.

7.11 Revenue and Cost Attribution

Banks should attribute:

• VRP execution fees
• TPP charges
• Internal processing costs

Metadata tagging enables product P&L measurement.

7.12 Operational Resilience Requirements

VRP enforcement systems must meet:

• Tier-1 availability SLAs
• Real-time latency budgets
• Active-active deployment
• Regulatory operational resilience frameworks (e.g., UK FCA)

OB gateways become systemically important financial infrastructure.

8. Dual-Stack Migration Patterns: Running OB v3 and OB v4 in Parallel

No tier-1 bank will perform a flag-day migration from OB v3.x to OB v4.x. Regulatory obligations, third-party dependencies, and internal core banking constraints require dual-stack coexistence for years.

8.1 Brownfield Reality Constraints

Banks migrating to OB v4 must contend with:

• Legacy OAuth 2.0 authorization servers
• v3.x TPP contractual obligations
• Legacy SDKs embedded in fintech applications
• Core banking systems with hard-coded assumptions
• Regulatory continuity requirements

OB v4 must be introduced without breaking existing TPP integrations.

8.2 Dual-Stack Architecture Overview

TPPs (v3) -------> | OB v3 API Gateway |
                   +-------------------+
                            |
                            v
                   +-------------------+
                   | Core Banking      |
                   | Systems           |
                   +-------------------+
                            ^
                            |
TPPs (v4) -------> | OB v4 API Gateway |
                   +-------------------+

Key principle: OB v3 and OB v4 must be logically isolated at the API and security layers, but may converge at the core banking enforcement layer.

8.3 API Version Routing Strategies

8.3.1 Path-Based Versioning

/open-banking/v3.1/...
/open-banking/v4.0/...

Advantages:

• Explicit version negotiation
• Simplest TPP integration
• Regulatory clarity

8.3.2 Hostname-Based Segregation

api-v3.bank.example
api-v4.bank.example

Advantages:

• Complete blast-radius isolation
• Independent TLS and certificate stacks

8.3.3 Gateway Policy Routing

If client supports FAPI2:
    route -> v4 stack
Else:
    route -> v3 stack

This requires dynamic metadata discovery and client capability negotiation.

8.4 Security Stack Segregation

OB v3 and OB v4 must not share security components:

8.5 Contract Translation Layer (Compatibility Shim)

Banks may introduce a contract translation layer to bridge v3 and v4:

TPP v3 Request -> Translation Layer -> v4 Internal Policy Model

Example Translation

// v3 Scope Model
"scope": "payments"

// Translated to:
"authorization_details": [
  { "type": "urn:openbanking:legacy:payments" }
]

This approach should be treated as temporary technical debt, not a permanent solution.

8.6 Blue/Green Deployment for OB v4

OB v4 should be deployed using blue/green or canary patterns:

OB v4 Blue Stack  <----> Load Balancer
OB v4 Green Stack <----> Load Balancer

This is critical due to:

• Cryptographic dependencies
• HSM integration
• Regulatory incident reporting requirements

8.7 TPP Migration Incentivisation

Banks should:

• Provide sandbox and conformance tooling
• Offer commercial incentives for v4 adoption
• Publish migration timelines with regulatory consultation

Forced migrations without tooling will fail.

8.8 Backwards Compatibility Risks

8.8.1 Token Semantics Drift

Bearer tokens in v3 vs sender-bound tokens in v4 create non-trivial developer friction.

8.8.2 Consent Semantics Drift

Scopes vs policy objects create UX and legal contract divergence.

8.8.3 Operational Complexity

Dual-stack doubles:

• Incident response surface
• Monitoring complexity
• Security patching burden

8.9 Core Banking Convergence Layer

Despite API dual-stack, core banking should converge to a single enforcement layer:

OB v3 Gateway -> Policy Adapter -> Core Policy Engine
OB v4 Gateway -> Policy Adapter -> Core Policy Engine

This reduces duplicated business logic.

8.10 Data Model Harmonisation

Banks must harmonise:

• Consent data models
• Mandate identifiers
• Ledger metadata schemas

Failure to harmonise results in irreconcilable regulatory reporting divergence.

8.11 Decommissioning Strategy

Banks should publish a staged decommissioning roadmap:

1. Freeze new v3 integrations
2. Incentivise v4 adoption
3. Mandate v4 for VRP and high-risk products
4. Sunset v3 with regulatory approval

8.12 Regulatory and Governance Considerations

Dual-stack operation must be approved by:

• Internal risk committees
• Regulators (e.g., FCA, CMA, CBPR)
• Third-party risk governance

OB v4 becomes systemically important infrastructure and falls under operational resilience frameworks.

9. Threat Models Unique to VRP and Delegated Payment Mandates

Variable Recurring Payments introduce persistent delegated financial authority, creating attack surfaces that don't exist in single-payment APIs. This section enumerates adversarial threat models and required mitigations.

9.1 Threat Model Overview

VRP systems must assume:

• Malicious TPPs
• Compromised client applications
• Phished or coerced users
• Insider threats
• Network and protocol-level adversaries
• Malware on customer devices

VRP mandates represent standing attack primitives - a successful compromise yields ongoing extraction capability.

9.2 Mandate Hijacking Attacks

Attack Vector

An attacker gains control of a mandate identifier and attempts to execute payments.

Methods

• API token exfiltration
• Mandate ID enumeration
• Insider misuse
• Logging system compromise

Mitigations

9.3 Consent Phishing and Social Engineering

Attack Vector

User is tricked into approving a malicious mandate (e.g., disguised merchant, deceptive UI, inflated limits).

Attack Scenarios

• Fake utility companies
• Dark patterns in consent UI
• Consent fatigue exploitation
• QR-code initiated mandate traps

Mitigations

• Mandatory merchant verification
• Consent UI summarisation with risk signals
• Cooling-off periods for high-risk mandates
• User revocation dashboards

Normative guidance:

Authorization Servers SHOULD implement behavioural and UX safeguards against consent coercion.

9.4 Policy Downgrade Attacks

Attack Vector

TPP attempts to reduce policy constraints after mandate creation (e.g., increase max amount, expand merchant scope).

Mitigations

• Mandate version immutability
• Mandatory user re-authentication for policy change
• Signed mandate policy hashes

9.5 Mandate ID Enumeration and Replay

Attack Vector

Sequential or predictable mandate identifiers enable brute-force execution attempts.

Mitigations

• High-entropy mandate identifiers
• Rate-limiting execution endpoints
• Execution-time policy validation
• Mandatory idempotency keys

9.6 Insider Threats

Attack Vector

Bank employees or compromised internal services manipulate mandates or bypass policy enforcement.

Mitigations

• Segregation of duties
• Immutable audit logs
• Dual-control administrative actions
• Privileged access monitoring

9.7 Compromised TPP Applications

Attack Vector

TPP backend compromised, leading to mass mandate abuse.

Mitigations

• TPP behavioural monitoring
• Mandate execution anomaly detection
• Transaction velocity limits per TPP
• Real-time revocation capability

9.8 Policy Engine Bypass

Attack Vector

Execution routed around policy engine via legacy payment channels.

Mitigations

• Network segmentation
• Mandatory policy enforcement hooks in payments engine
• Policy decision logs enforced at gateway and core layers

9.9 Replay and Idempotency Abuse

Attack Vector

Replaying execution requests to trigger duplicate payments.

Mitigations

• Idempotency keys
• Payment intent identifiers
• Exactly-once execution semantics

9.10 Mandate Lifecycle Race Conditions

Attack Vector

Simultaneous revocation and execution causing inconsistent enforcement.

Mitigations

• Strong consistency guarantees
• Revocation-before-execution checks
• Distributed locking or consensus mechanisms

9.11 Merchant Spoofing and Beneficiary Substitution

Attack Vector

TPP swaps beneficiary account while preserving merchant branding.

Mitigations

• Beneficiary cryptographic binding to mandate
• Merchant registry validation
• Signed beneficiary identity assertions

9.12 Long-Lived Mandate Risk Accumulation

Mandates accumulate risk over time:

• Changes in customer circumstances
• Dormant mandates forgotten
• TPP ownership changes
• Regulatory changes

Mitigations

• Periodic mandate revalidation
• Mandatory expiry dates
• Customer reminders and dashboards

9.13 Attack Tree Summary

Goal: Extract Funds via VRP
|
+-- Phish Consent
|   +-- Fake Merchant UI
|   +-- Dark Pattern Consent
|
+-- Steal Mandate ID
|   +-- Token Exfiltration
|   +-- Enumeration
|
+-- Bypass Policy Engine
|   +-- Legacy Payment Path
|   +-- Insider Override
|
+-- Replay Execution
    +-- Duplicate Requests
    +-- Race Conditions

9.14 Normative Security Controls Summary

Banks MUST implement:

• Sender-constrained tokens
• PAR, RAR, JARM
• Mandate policy binding
• Immutable audit logs
• Idempotent execution APIs
• Merchant and beneficiary verification

Banks SHOULD implement:

• Behavioural analytics
• Consent UX safeguards
• Periodic mandate revalidation
• Real-time mandate kill switches

10. Federation, Policy Engines, and the Bank-as-Platform Future

Open Banking v4 and VRP are not the end state. They are transitional architectures toward federated financial trust frameworks and programmable banking platforms.

This section provides a brief overview. A dedicated future article will explore these topics in depth, including OpenID Federation, policy-as-code engines (OPA/Cedar), event streaming architectures, and the evolution toward bank-as-platform models.

10.1 OpenID Federation and Trust Frameworks

Current Open Banking ecosystems rely on:

• Central directories
• Static X.509 trust anchors
• Manual onboarding workflows

These models do not scale globally or across multi-jurisdiction ecosystems.

OpenID Federation introduces:

• Entity Statements
• Trust Marks
• Federation Hierarchies
• Machine-verifiable trust metadata

This enables dynamic, cryptographically verifiable ecosystem trust. Future VRP systems will operate across federated trust domains.

10.2 Policy Engines as Financial Control Planes

Legacy banks embed policy in:

• COBOL
• Java payment engines
• Manual configuration

Modern architectures externalise policy into policy engines such as Open Policy Agent (OPA), Cedar (the policy language used by AWS Verified Permissions), or Rego-based systems.

Example policy (Rego-style):

allow_payment {
  input.amount <= data.mandate.max_amount
  input.merchant == data.mandate.merchant_id
  time.now >= data.mandate.validity.start
  time.now <= data.mandate.validity.end
}

Policies become versioned, auditable, testable, and deployable.

10.3 Bank as a Programmable Financial Platform

VRP, policy engines, and federation enable Bank-as-a-Platform:

• Programmable mandates
• Conditional payments
• Event-driven financial workflows
• Smart escrow and treasury automation
• Embedded finance primitives

Banks expose financial control planes, not just APIs.

10.4 Competitive Implications

Entities that control:

• Policy engines
• Federation trust layers
• Mandate UX

...will control the future financial platform layer.

Traditional banks risk becoming regulated execution utilities.

10.5 Architectural End-State Vision

+-------------------------------+
| Federated Trust Framework     |
+-------------------------------+
              |
              v
+-------------------------------+
| Policy Engine Control         |
+-------------------------------+
              |
              v
+-------------------------------+
| Programmable Payments Core    |
+-------------------------------+
              |
              v
+-------------------------------+
| Treasury, Risk, AI Systems    |
+-------------------------------+

Open Banking v4 is Phase 1 of Bank-as-Platform.

A future article will explore federation, policy-as-code, event streaming, AI-driven treasury, and platform governance in detail.

Conclusion: Open Banking as a Distributed Financial Operating System

Open Banking v3 delivered interoperability.

Open Banking v4 delivers adversarial security.

VRP delivers programmable financial authority.

The next decade will see banks transition from transaction processors to financial platforms. Those who build policy engines, federation frameworks, and programmable mandate systems will define the future of finance. Those who do not will become regulated execution utilities.

OB v4 is not a regulatory upgrade. It is the foundation of distributed programmable finance.

VRP mandates are delegated financial authority encoded as policy objects, enforced by cryptographic primitives, and executed through hardened distributed systems.

Banks that build federation, policy engines, and programmable mandate systems will define the future of finance. Those that do not will become regulated execution utilities.
